Filter drier KLE-085 SAE for refrigeration systems

Filter drier KLE-085 SAE for refrigeration systems at a reduced price in Moldova

Filter drier KLE-085 SAE for refrigeration systems at a reduced price

Filter drier KLE-085 SAE 5/8″

Первоначальная цена составляла 92 lei.Текущая цена: 82 lei. +VAT

Model: KLE-085 SAE 5/8′′

Tip: Unidirectional filter drier
Connection: 5/8″
Working pressure (PS): 46 bar
Burst pressure: 175 bar
Threaded connection – 5/8″ SAE.
Refrigeranți: R22, R134a, R404A, R407C, R410A, R507

48 in stock

SKU: KLE085-SAE-5/8" Category: Filter dryer, Catalog Tag: 5/8, Filter drier, KEY-085 Brand: ALTAL™

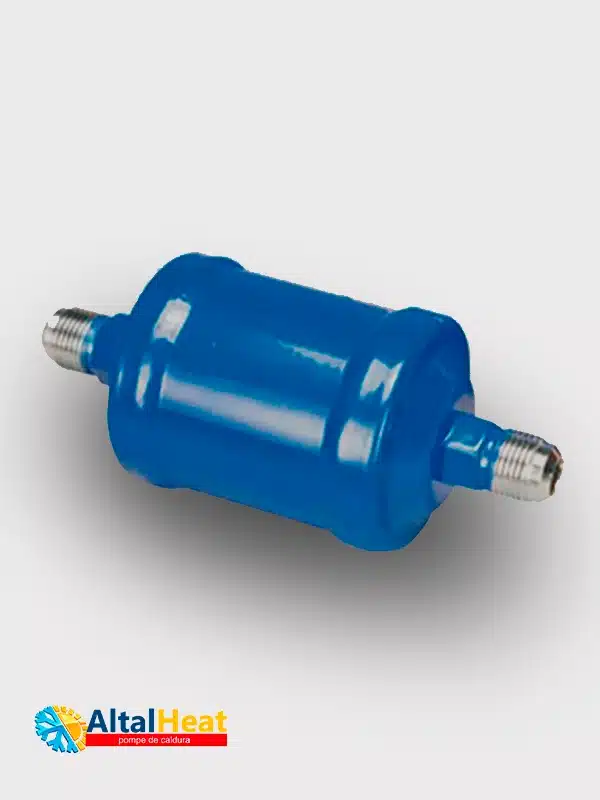

Filter drier KLE-085 SAE 5/8″

— is a high-quality universal filter drier intended for use in refrigeration systems, chillers and heat pumps. The KLE-085 SAE filter drier is designed for installation on the liquid line and ensures efficient filtration of the refrigerant, removing moisture, acids and solid impurities from the circuit.

The filter drier is compatible with refrigerants R12, R22, R502, R134a, R404A, R407C, R410A, R507, as well as systems using CFC, HCFC and HFC refrigerants and specific lubricants. The filtration capacity reaches up to 0.10 microns, contributing to the protection of the compressor and the stable operation of the refrigeration system.

The removal of organic and inorganic acids is achieved by activated aluminum oxide, and moisture is absorbed by the molecular sieve. The addition of activated carbon helps reduce wax deposits and impurities at low operating temperatures.

Technical features

It would be: 085 SAE unidirectional
Working pressure (PS): 46 bar
Burst pressure: 175 bar
Connections: 5/8″ SAE

He would be	KLE-085 SAE
Working pressure (PS)	46 were
Burst pressure	175 were
CONNECTIONS	5/8″ SAE

The KLE-085 SAE filter drier has a solid core made of a mixture of molecular sieve and activated aluminum. The adsorbents are fixed using a synthetic adhesive material for high absorption and filtration efficiency. The robust construction and internal protective elements ensure reliable operation and a long service life.

The 083 SAE filter drier is available with a 5/8″ SAE threaded connection, as well as in versions with a 5/8″ ODF solder connection. For additional information and compatibility with your system, contact us.

Construction

The KLE-085 SAE 5/8″ filter drier has a core that is made of a mixture of molecular sieve and activated aluminum oxide, fixed with synthetic adhesive.

The internal structure ensures:

effective moisture absorption
protection against acids
stable operation in continuous mode

❓ FAQ

What is a KLE-085 SAE filter drier?

It is a filter drier for refrigeration systems and heat pumps, mounted on the liquid line.

What is it used for?

It is used to remove moisture, acids and impurities from the refrigerant.

What refrigerants is it compatible with?

With R12, R22, R502, R134a, R404A, R407C, R410A, R507 and CFC/HCFC/HFC agents.

What is the filtration level?

Up to 0.10 microns.

What are the pressure parameters?

46 bar working pressure and 175 bar burst pressure.

🔗 Compatible products

See other Bi-directional models.

Вес	0.661 кг
Габариты	18.8 × 6.65 × 6.65 см

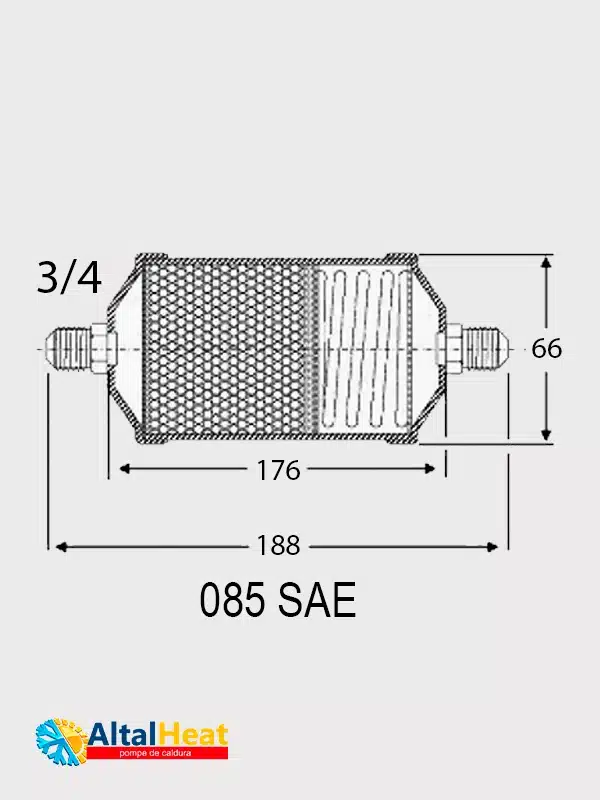

Specifications

Filter drier model. SAE thread connection, unidirectional:

Model	Connection	A	ΦB	ΦC	G	L	S.	For M	Weight (g)
083 SAE	3/8 SAE	158	Φ66.5	F8	17	167	16	5/8-18UNF	582
084 SAE	1/2 SAE	165		F10	19	175	19	3/4-16UNF	624
085 SAE	5/8 SAE	176		F13	23.5	188	22	7/8-14UNF	661
163 SAE	3/8 SAE	171	F79	F8	17	180	16	5/8-18UNF	799
164 SAE	1/2 SAE	178		F10	19	188	19	3/4-16UNF	839
165 SAE	5/8 SAE	189		F13	23.5	201	22	7/8-14UNF	893
303 SAE	3/8 SAE	245		F8	17	254	16	5/8-18UNF	1303
304 SAE	1/2 SAE	252		F10	19	262	19	3/4-16UNF	1334
305 SAE	5/8 SAE	263		F13	23.5	275	22	7/8-14UNF	1294
306 SAE	3/4 SAE	265		F16	25	277	27	1-1/16-14UNF	1352
