DC compressor control board 12 kW

(for inverter compressor from 8.5 to 35 kW)

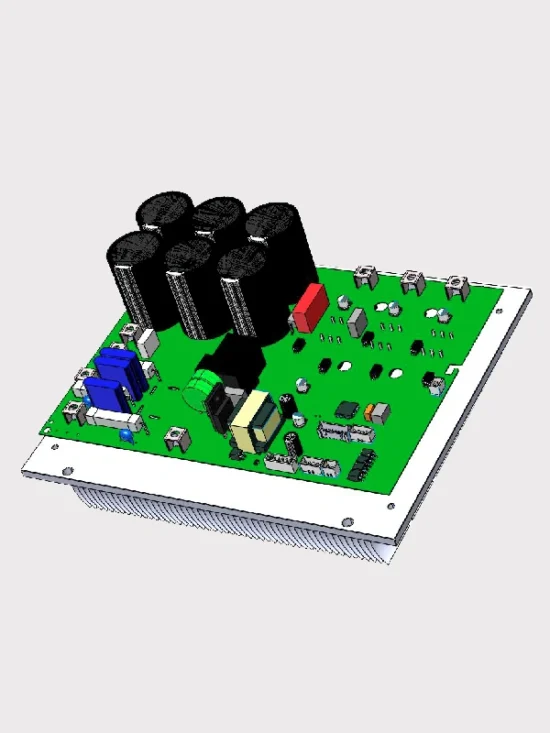

DC 12 kW compressor control board model 12KWDCEVIONE3 is a special control module for compressor inverter. DC 12 kW compressor control board, designed for heat pumps with V/F vector control functions. DC 12 kW compressor control board model12KWDCEVIONE3 is designed for managing compressors in heat pump systems with water and air pumps. 12KWDCEVIONE3 not only meets the requirements of cost reduction, product quality improvement and production efficiency, but also ensures ease of maintenance and commissioning.

System control and configuration

Control capabilities

• 3-way valve for switching between heating and domestic hot water (DHW) mode.
• 4-way valve for refrigerant for optimal refrigerant management.
• Connecting an electronic and additional water heater.
• Fan speed adjustment (DC).
• Compressor heating for operation at low temperatures.
• Inverter compressor control for increased energy efficiency.
• Control of the feed pump and circulation pump via PWM.
• Intended for heat pumps air-water and ground-water.

---

DC compressor control board 12 kW. Equipped with controller

• Main control board (1 pc.).
• Display (1 pc.) with friendly interface.
• Main control board (1 pc.).
• 8-12 temperature sensors for precise monitoring of system operation.
• Dry contact input signal for additional connections.

Additional equipment:

• High and low pressure relays for operational safety.
• Switches:
  • water flow,
  • of air cooling requirement.

---

sensors

• Water tank temperature.
• Outlet temperature.
• Ambient temperature.
• Compression and suction temperature.
• Coil temperature.
• Solar panel temperature (when connecting solar energy sources).

---

Main functions

• Single compressor control with technology support EEV (electronic expansion valve) and HOME (vapor injection).
• Wi-Fi integration for remote monitoring and configuration.
• Planner with 24-hour cycle.
• On/off synchronization function.
• Cold, return and delivery water temperature compensation.
• Compressor current detection for overload protection.
• Compatibility with direct current and alternating current (AC/DC) fans.
• Maintaining a stable water temperature in the tank.

This system represents a universal solution for heating and cooling, ensuring reliability, energy efficiency and ease of control.
