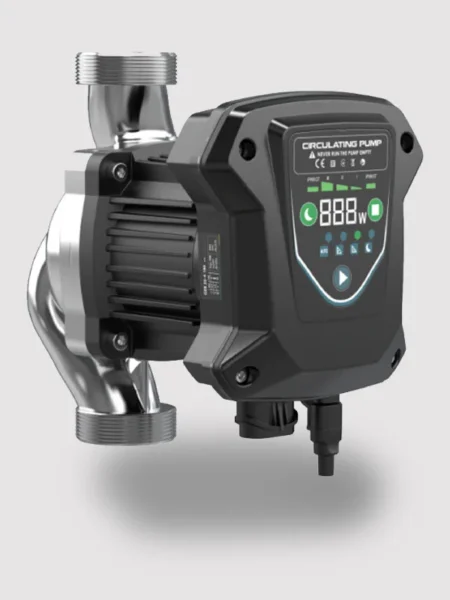

Circulation pump GEB32-8-180N

with PWM control, energy efficient

The GEB32-8-180N circulation pump is energy efficient and equipped with a synchronous motor with a permanent magnet rotor. It is intended for the circulation of water or glycol-containing liquids in heat pumps, as well as in adjustable heating systems, including variable flow systems.

Avantaje și caracteristici

• Operating modes:
  • Fixed speed (n-const).
  • Automatic modes:
    • Δp-v (proportional pressure).
    • Δp-c (constant pressure).
    • Signal control PWM from the heat pump controller ALTAL.
    • Water flow measurement with information display on the control panel.
    • Water flow control (with sensor).
  • Switching modes is done with a single button on the front panel of the pump.
• Construction:
  • The universal impeller allows easy replacement of most Grundfos circulation pump models.
  • Anti-corrosive surface with cataphoresis coating.
  • Ceramic shaft and bearing for durable operation.
  • Status indicator and release screw on the front panel.
  • Front connection for power supply, for ease of assembly, including for installation inside boilers.
  • Easy access to the 4 fixing screws.
• Integrate:
  • Support for external SHIM (PWM) signal control (Mini Superseal connector, bidirectional communication), allowing the pump to be integrated into systems controlled by controllers or smart homes.
  • Possibility to transmit data on the pump status (operating status, power consumed) to the external controller for precise performance management.

Operating mode

1. Control PWM
2. Mod PP
3. Against CP
4. CS mode, three speeds
5. Automatic mode
6. Night mode

Compatible accessories (to be ordered separately):

• Quick connection set.
• Power adapters for Superseal Molex or Superseal Volex connectors (150 mm).
• Signal cable for SHIM signal (1000 mm).

Circulation pump GEB32-8-180N

— represents a reliable solution for efficient and economical operation of heating systems, ensuring a long service life and the possibility of integration into modern intelligent control systems.
