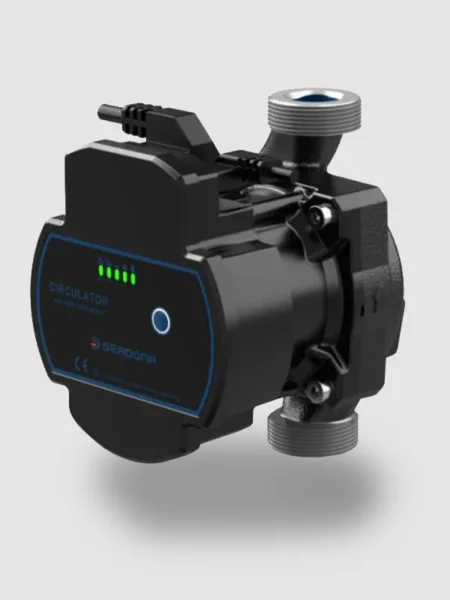

SPM25-8-130A PWM BLDC Circulation Pump
Первоначальная цена составляла 677 lei.593 RONТекущая цена: 593 lei. +VAT
Model SPM25‐8‐130A
- Tip: centrifugal electric pump
- Motor: Invertor BLDC
- Speed control: PWM
- Power supply: AC 230V, 50 Hz
- Input power: 4-63 W
- Curent: 0.04～0.65 A
- Rotation speed range: 1000～4500r/m
- Dimensiune racord: DN25
- Mounting length: 130 mm
- Maximum height: max 8 metri
- Water flow: max 3,5 m3/h
- Control: NTC+varistor+releu
- Protection: IP44
12 in stock (can be backordered)
SPM25-8-130A PWM BLDC Circulation Pump
is energy efficient and is equipped with a synchronous motor with a permanent magnet rotor. Intended for the circulation of water or glycol-containing liquids in heat pumps, as well as in adjustable heating systems, including variable flow systems. Circulation pump SPM25-8-130A. Advantages and features:
- Operating modes:
- Fixed speed (n-const).
- Automatic modes:
- Δp-v (proportional pressure).
- Δp-c (constant pressure).
- Signal control PWM from the heat pump controller ALTAL.
- Water flow measurement with information display on the control panel.
- Water flow control (with sensor).
- Switching modes is done with a single key on the front panel of the pump.
- Construction:
- Universal impeller allows easy replacement of most Grundfos pump models.
- Anti-corrosive surface with cataphoresis coating.
- Ceramic shaft and bearing for long durability.
- Status indicators and release screw on the front panel.
- Front connection for power supply, for ease of assembly, including for installation inside boilers.
- Easy access to the 4 fixing screws.
- Integrate:
- Support for external SHIM signal control (Mini Superseal connector, bidirectional communication), allowing the pump to be integrated into systems controlled by controllers or smart homes.
- Possibility to transmit data on the pump status (operating status, power consumed) to the external controller for precise performance management.
Compatible accessories (to be ordered separately):
- Quick connection set.
- Power adapter for connecting Superseal Molex or Superseal Volex connectors (150 mm).
- Signal cable for SHIM signal (1000 mm).
Energy-efficient SPM25-8-130A circulation pump
— is a reliable solution for efficient and economical operation of heating systems, ensuring a long service life and the possibility of integration into modern intelligent control systems. Circulation pump SPM25-8-130A with PWM control is an ideal solution for heat pumps.
| Вес | 1.645 кг |
|---|---|
| Габариты | 14 × 14 × 12 см |
