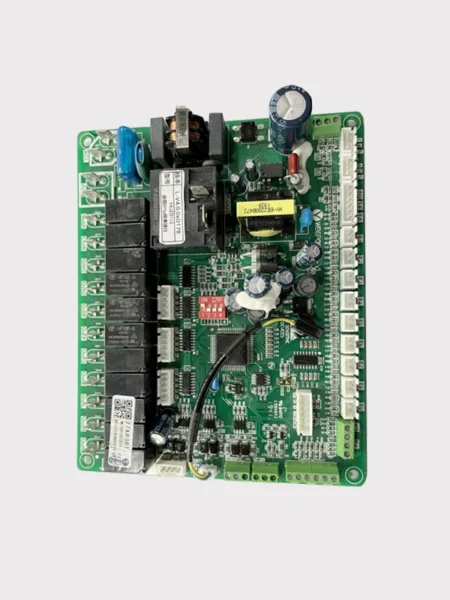

Heat pump controller WZ6P00303A

Heat pump controller WZ6P00303A air-water provides efficient management of all key components of the system: compressor, pump, fan, heater and additional heat sources. Their purpose is to automate the process of heating water, maintain the set temperature parameters and integrate operation with external heat sources, such as central heating boilers. The heat pump with Heat Pump Controller WZ6P00303A extracts heat from the surrounding air and transfers it to the hot water tank. Using the energy stored in natural resources, the device converts it to a temperature level suitable for heating. The system can be supplemented with an electric heater to increase efficiency in low temperature conditions.

---

Heat pump controller WZ6P00303A. Main functions:

• ventilator management;
• pump operation control and Compressors;
• electric heater control;
• monitoring of the additional heat source pump;
• possibility of connecting a room thermostat.

---

Equipment and facilities:

• Display color TFT with friendly interface;
• Tempered glass front panel with a thickness of 2 mm;
• Temperature sensors:
  • for the domestic hot water tank (DHW);
  • for cooler control;
  • for the additional heat source;
  • for outside air.
• Electronic pressure sensors (high and low);
• PWM control for circulation pumps,
• Port RS-485 for software update.

This WZ6P00303A (air-to-water) heat pump controller ensures easy management, stable system operation and the possibility of integration with additional heat sources. It is ideal for creating modern, energy-efficient solutions in the field of heating and domestic hot water supply.
