Geothermal collector 90x32x8

Geothermal technologies: ecology, efficiency and economy

Geothermal technologies are becoming a leader in the field of heating and cooling. They are a reliable solution for the efficient use of renewable energy. They provide heating, cooling of buildings and hot water supply, using the heat of the earth. The use of these systems reduces electricity costs and minimizes carbon dioxide emissions.

The benefits of geothermal technologies

1. Reliability and durabilityGeothermal systems operate year-round, regardless of weather conditions.
2. Environmental safetyHeat pumps use the earth's heat, reducing dependence on fossil fuels.
3. Economic efficiencySignificant savings are achieved on heating and cooling due to reduced operating costs.

How does a geothermal heat pump work?

Geothermal heat pump uses electrical energy to convert the earth's heat into usable energy for heating. The system is based on a geothermal circuit:

• Horizontal outlineThe pipes are placed under the soil layer, requiring a large area.
• Vertical outlineThe pipes are lowered into deep wells, saving space.

Regardless of the type of circuit, the heat exchanger transfers the accumulated heat to the circulating fluid in the system. Geothermal probe collector 90x32x8 is used to connect all probes into a single collector.

System components

1. Ground heat exchangerMade of HDPE pipes, it withstands pressures of up to 20 atmospheres.

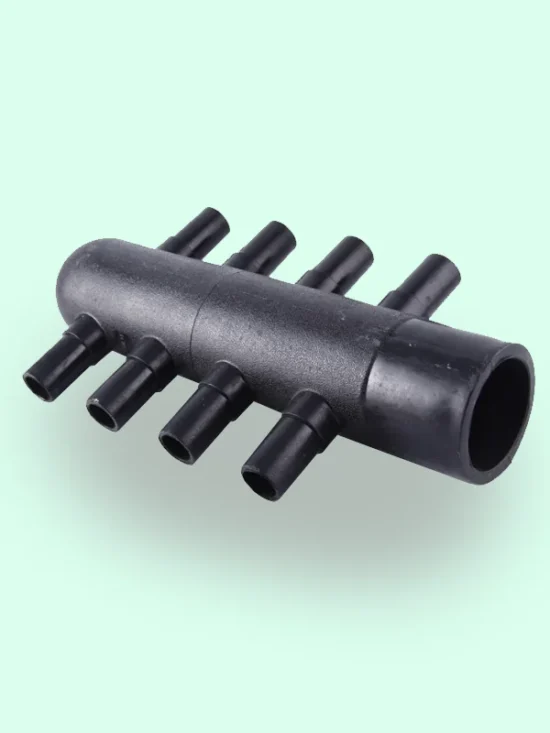

2. Geothermal probe collector 90x32x8. It unites the system circuits and connects to the heat pump.
3. Circulating fluidMost often, a mixture of ethylene glycol or propylene glycol with water.

Geothermal probe collector 90x32x8: installation features

The wells are placed in wells between 70 and 300 meters deep. The main types:

• Unicircuit (2×32 mm sau 2×40 mm).
• Double circuit (4×32 mm).

The temperature at a depth of 150 m is stable (approximately 15 °C), sufficient for the efficient operation of the system. However, deep drilling requires considerable investment.

Installation and design

1. Carrying out geological analysis of the terrain.
2. Project development depending on soil type.
3. Compliance with safety regulations and environmental standards.
4. Using high-quality materials, such as HDPE pipes.

Geothermal probe collector 90x32x8 — Earth's Heat

This is an underground heat exchanger, made in the form of a double U-tube, placed in the well. The module is 1 m of the well. The maximum depth of a well is 100 m. The amount of energy required for the heat pump depends on its power, which determines the number and depth of the wells. The minimum distance between the wells is 5 m, and the distance from the wells to the heating objects must be at least 5-10 m. The heating capacity per 1 m of the well is calculated depending on the composition of the soil. Before drilling, a geological analysis of the terrain must be carried out to determine the installation model and the thermal properties of the soil. Drilling must be carried out by qualified specialists, who install and insulate the heat exchanger. Geothermal well collector 90x32x8 is used to connect all the wells into a single circuit.

Soil types and heat transfer

CONSTRUCTION OF THE TECHNOLOGICAL SYSTEM

1. flexible connection;
2. thermometer;
3. filter;
4. expansion tank with pressure gauge;
5. ball valve;
6. circulation pump;
7. grounding;
8. flowmeter (with dial);
9. distribution manifold;
10. distribution manifold.

Filling with antifreeze solution and deaeration is done for each separate circuit, by transferring an antifreeze mixture from a separate tank, using a submersible pump. Freezing temperature of the solution for the ground circuit (ground loop), for the ALTAL heat pump GWHP, is approximately -5 to -12 °C. It is essential that all elements of the circuit are made of anti-corrosive materials. The distribution device and the collector can be made of plastic or copper pipes, etc.

How to make a geothermal probe collector 90x32x8

The heat exchange pipes, 32 or 40 mm, are connected to plastic ends by means of a U-shaped corner and a HDPE75x40 welding coupling. Sometimes, a two-pipe system is used. A 2-meter weight, such as a concrete pipe, is fixed to the plastic end to guide the heat exchanger into the well. After drilling and removing the equipment and water, if the soil allows, the pairs of heat exchange pipes are inserted without protective casing. Bentonite or cement is pumped under pressure through the central tube to completely fill it. To connect the wells, a Geothermal Well Collector 90x32x8 is used. The length of the pipes in the well is equal to twice the depth of the well plus the distance to the heat pump. An example of a two-pipe system is illustrated in the diagram.

Connecting system components

Geothermal probe collector 90x32x8 is connected to pipes using HDPE couplings or electrical fittings. This method ensures tightness and durability of the connections. The use of professional equipment and qualified specialists guarantees the reliability of the system.

Conclusion

Geothermal technologies represent an innovative solution for ecological heating and cooling. They are reliable, economical and environmentally safe. Correct design and quality installation ensure the durability and efficiency of the system. By investing in geothermal equipment, you choose a future based on renewable energy.
