Bloc terminal TB-1510

Bloc terminal TB-1510

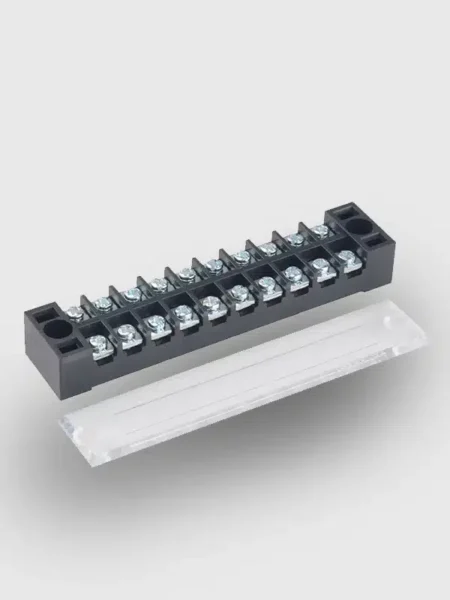

The TB-1510 15A 10P 600V terminal block is mainly used to connect conductors for transmitting power in the circuit. Terminal blocks differ in their mounting and construction method. Unlike the classic twisting of wires, they do not require much time and additional materials for installation.

The terminal block consists of a carbolite base and high-quality alkaline brass busbars, fitted with screws and metal plates (clamps).

Features

• with protective cap;
• maximum voltage: 600 V;
• maximum current: 15 A;
• product dimensions: 107 × 22 × 18 mm;
• 10 poles for connecting conductors;
• provided with 2 holes for fixing;
• protection degree: IP20.

An important advantage of using this TB-1510 Terminal Block is the possibility of connecting aluminum and copper conductors. To avoid possible oxidation, only one conductor is inserted under each fixing screw, without direct contact between the wires.
