8725 – mechanical metal cutting saw
Первоначальная цена составляла 2 959 lei.2 642 RONТекущая цена: 2 642 lei.
Model: 8725
Metal cutting machine
- Maximum round workpiece size: Ø 250 mm
- Maximum square piece size: 250 x 250 mm
- Maximum length of the cut piece at the stop: 350 mm
- Distance from the base of the machine to the workpiece support surface: 550 mm
- Electric motor power: 2.2 kW
- Maximum machine weight: 700 kg
8725 – used metal cutting machine
General description

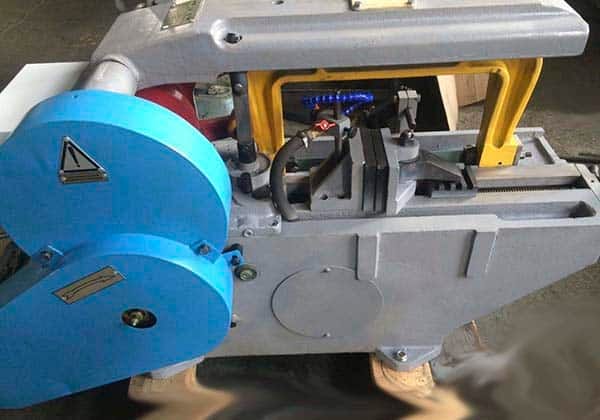

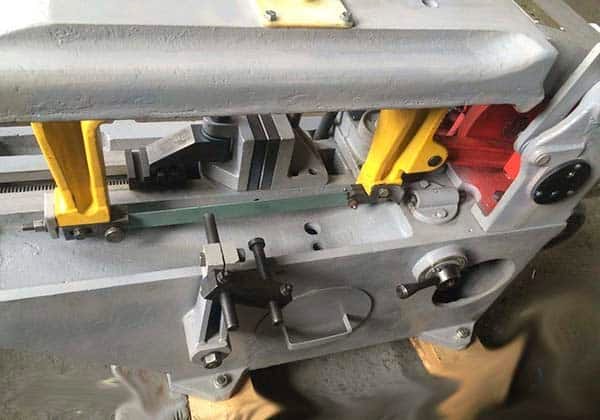

8725 – mechanical metal cutting saw is an industrial machine designed for precise cutting of metal materials by reciprocating motion of the saw blade. The equipment is ideal for cutting pipes, U-profiles, angles, round bars, as well as square and strip steel.
8725 – mechanical metal cutting saw is used both in workshops and in series production, offering reliability and consistent precision.
Field of use
The 8725 machine is suitable for:
- carbon and alloy steel
- cast iron
- non-ferrous metals
Types of semi-finished products:
- pipe
- metal profiles (U, L)
- round bars
- square and flat bars
Main functionalities
- Cutting perpendicular to the material axis
- Angle cutting up to 45°
- Secure fixation in special vices
- Possibility of batch billing
- Stepless adjustment of cutting speed
- Automatic cooling and lubrication system (LRO)
Technical characteristics 8725 – mechanical metal cutting saw
Parameters according to GOST 601-82:
- Maximum diameter of round material: Ø 250 mm
- Maximum square material section: 220 × 220 mm
- Maximum cutting length: 350 mm
- Work table height: 550 mm
- Engine power: 2,12 kW
- Total weight: 500 kg
Advantages 8725 – mechanical metal cutting saw
- High cutting precision
- Robust and durable construction
- Adaptable for different types of metal
- Simple operation and low maintenance
- Increased efficiency in production
| Parameter name | 872A | 872M | 8725 | 8B72 |
|---|---|---|---|---|
| Main parameters of the machine | ||||
| Maximum cross-section size of round material (90° angle), mm | 250 | 250 | 250 | 250 |
| Maximum cross-section size of round material (45° angle), mm | 120 | 100 | 140 | 140 |
| Maximum size of square material section (angle 90°), mm | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Maximum size of rectangular material section (45° angle), mm | 120 × 120 | 100 × 100 | 140 × 250 | – |
| Maximum distance from the canvas to the top of the frame, mm | 223 | 223 | – | – |
| Maximum cutting length at the stop, mm | 350 | 350 | 350 | 350 |
| Distance from the machine base to the workpiece support surface, mm | – | – | 550 | 450 |
| Saw blade dimensions (L × W × Thickness), mm | 500 | 450 | 450 × 40 × 2; Ø 8 | 500 × 40 × 2; Ø 8 |
| Maximum cutting width, mm | 2,5 | 3,8 | 3,5 | 3,8 |
| Number of double strokes per minute | 85; 110 | 85; 110 | 45, 56, 71, 112, 140, 128 | 75, 120 |
| Frame stroke length, mm | 150 | 140, 180 | 180 | 140, 180 |
| Angle of rotation of the vise | 45° | 45° | 45° | 45° |
| Cutting productivity steel 45 Ø100 mm (cm²/min) | – | – | 30 | – |
| Material clamping mechanism | manual | manual | manual | – |
| Electrical equipment | ||||
| Main motor (kW / rpm) | 1,7 | 1,5 (1420) | 2,2 | 1,5 (1400) |
| Cooling pump motor (kW / rpm) | – | – | 0,12 | 0,125 (2800) |
| Dimensions and mass | ||||
| Dimensions (L × w × h), mm | 1470 × 875 × 925 | 1470 × 690 × 885 | 1690 × 700 × 900 | 1610 × 700 × 900 |
| Mass, kg | 605 | 650 | 700 | 645 |
| Вес | 700 кг |
|---|---|
| Габариты | 1690 × 700 × 900 см |
